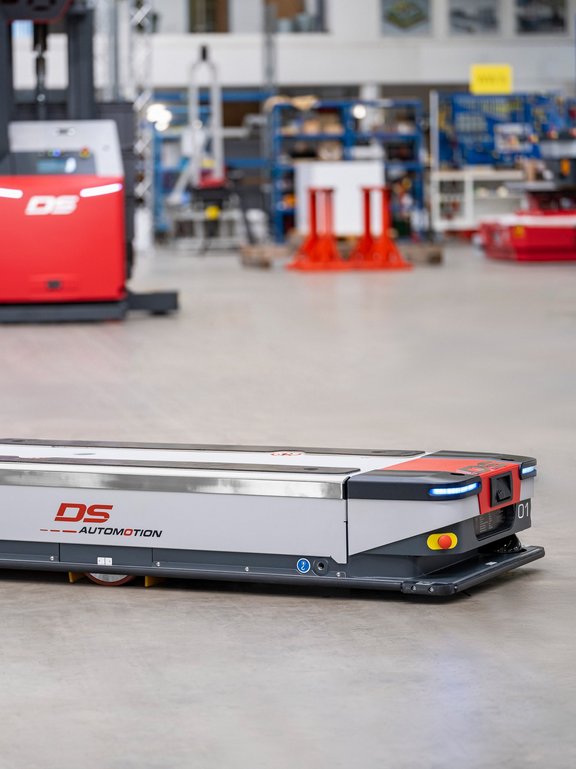

OSCAR

The platform vehicle with the highest performance

Compact design
Highest driving flexibility even in confined spaces
Sturdy steel construction with high load capacity
Automatic load change by means of integrated lift drive

agile

Wide range of applications and many transport options

Thanks to the extremely low design, our OSCAR is suitable for a large number of undercarriage transports. Whether undercarriages, racks, boxes or roll carts, all this can be picked up, transported and set down automatically. A high payload of 1000kg makes the OSCAR an absolute transport specialist.

Do you have any questions?

Contact

Highlight

Maneuverability

Thanks to the proven drive technology, OSCAR navigates in the tightest of spaces. The servo drives ensure smooth running and positioning accuracy even in tight station conditions. Depending on the drive concept, OSCAR rotates at a standstill or moves completely surface-mobile through the course.

Solution

The perfect underride vehicle for your requirements

Area chaining

Production halls often extend over many areas. Production lines are often not continuous, which means that different production steps are spatially separated from each other. This is the perfect application area for OSCAR.

Experience more highlights

OSCAR

Due to the differential drive, forward and reverse travel is possible at the same speed. The AGV can travel up to 1.6m/sec / 5 f/s and turn while stationary

Due to the very stable design of the OSCAR, payloads of up to 1,000kg / 2,200 lbs are possible.

Very low design of the AGV with a height of 260mm or 295mm / 10 in or 11.5 in

OSCAR

Variants & technical data

With 80mm / 3 in lifting height, the OSCAR spin 180 is our lowest vehicle and especially suitable for load pickups with little space.

Payload: max. 1.0 t / 2,200 lbs
AGV frame height: 260mm / 10 in

Lifting height: 80 mm / 3 in
Speed: max. 1.6m/s / 5 f/s
Size (LxWxH): 1,620x560x260 mm / 63.78x22.05x10.24 in
Protective field: rear/front 180°
Battery: 48V / 30Ah
Navigation: Free navigation by means of contour-based laser navigation and optional magnetic point navigation

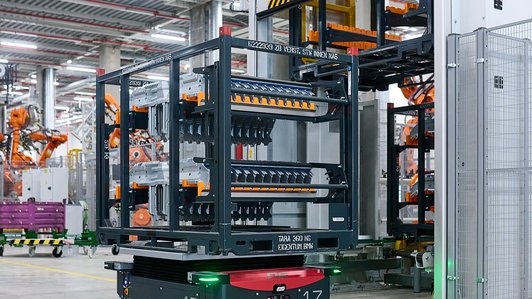

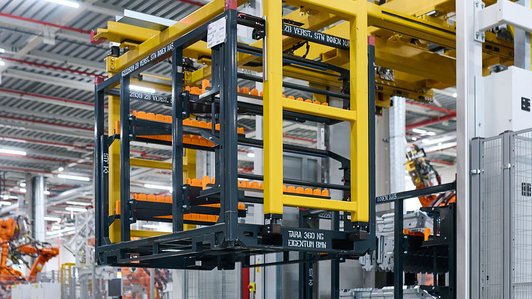

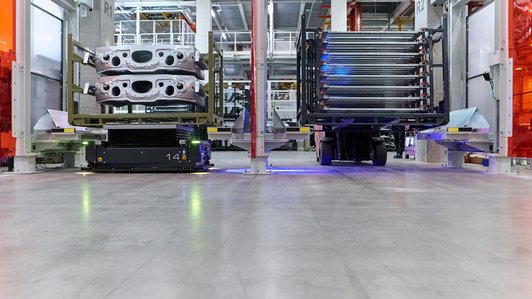

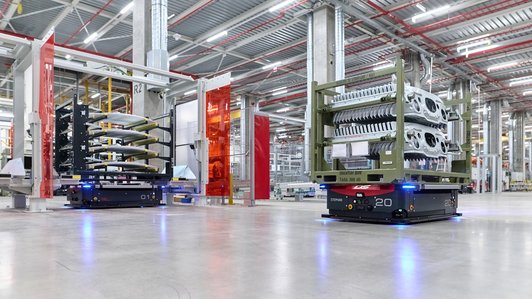

The 295 mm / 12 in flat OSCAR spin 360 is ideal for driving under load carriers or dollies that need to be lifted higher.

Payload: max. 1.0 t / 2,200 lbs
AGV frame height: 295mm / 12 in

Lifting height: 130 mm / 5 in
Speed: max. 1.6m/s / 5 f/s
Size (LxWxH): 1,670x700x295 mm / 65.75x27.56x11.61 in
Protective field: rear/front 180°
Battery: 48V / 30Ah
Navigation: Free navigation by means of contour-based laser navigation and optional magnetic point navigation

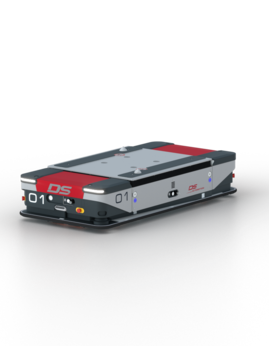

Compact design with omnidirectional drive technology ensures efficiency even in the tightest of spaces thanks to its area mobility.

Payload: max. 1.0 t / 2,200 lbs
AGV frame height: 310mm / 12 in

Lifting height: 160 mm / 6 in
Speed: max. 1.6m/s / 5 f/s
Size (LxWxH): 1520x720x310 mm / 59.8x28.3x12.2 in
Protective field: rear/front 180°
Battery: LFP
Navigation: Free navigation by means of contour-based laser navigation and optional magnetic point navigation
