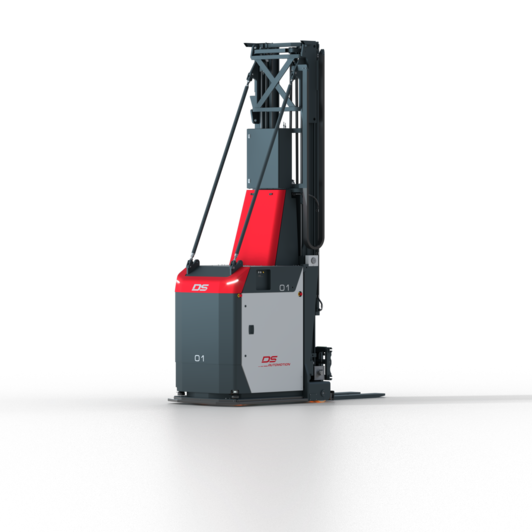

ARNY
Classic | HD | Duplex | Triplex
The counterbalanced truck that wants to reach high.
- Compact design for narrow aisles
- Wide range of applications
- Lifting height up to max. 8.5 m / 278 ft
- Payload up to max. 2.5 t / 5,500 lbs
heavyweight
Versatile heavyweight
When we developed our ARNY counterbalanced truck, we focused on one central requirement: high load capacity at great heights. But that wasn't enough, we packed its strength into a compact housing so that despite its size it has the necessary flexibility for narrow warehouses.
Driverless counterbalanced truck without compromise
Accessibility
With all our vehicles, we place particular emphasis on ensuring that our components are durable and reliable. But if something does need to be replaced, the vehicle must not be at a standstill for too long. That's why ARNY is designed in such a way that all components can be checked and replaced from a standing start. This minimizes downtimes.
Variability
To ensure that ARNY is not limited to Euro pallets when it comes to picking up loads, we have given it a great deal of variability: The forks can be adapted to a wide variety of loads in different stages. These can be configured for each application via the terminal and the central master control.
PLC safety control
The central heart of the safety system is a Siemens ET200SP F safety PLC, which enables the use and integration of a wide range of certified sensors and actuators via PROFI Safe and I/O Link. In combination with safe radio and vehicle positioning, ARNY can also be integrated into production conditions with increased safety standards.
According to your measurements
When we say ARNY goes high, we mean it. In a variety of designs, it can be used for high-bay warehouses as well as carry unusually large loads.
The best thing about it? With its compact design, it can be integrated into your existing storage system without any problems and is completely geared to your requirements.
Benefits, that move
Our all-rounder can not only accommodate up to two Euro pallets and industrial pallets, but also boxes, containers or special goods tailored to your needs.
With the help of the latest sensor technology and sophisticated software, our products are more precise than any others.
The compatibility of our product range means that an optimal solution can be tailored to your requirements.
Due to the coordinated software technology, your orders can be optimized and processed efficiently
Our proprietary autonomous vehicle software, ARCOS, enables our vehicles to handle jobs autonomously while maintaining the highest efficiency.
Through our AI-supported optimization processes, the processes to be handled can be optimally planned and executed.
Our NAVIOS control system software is available with the VDA5050 interface.
You can expand your plant at any time and equip it with additional vehicles. These are easy to integrate into the existing plant.
The perfect vehicle for your requirements
Shuttle Systems
A channel storage system automated by AGV combines the advantages of a high storage density with those of a fully automated warehouse. Here, fork-lift AGVs take over both the storage and retrieval of the pallets and the targeted transfer of the shuttles, if necessary together with their docking station. This means that channel storage systems can be fully automated.
Variants & Technical Data
Uncompromising industrial suitability combined with a high load capacity and the eye-catching dimension of the lifting height.
- Payload: Max. 1.5 t / 3,300 lbs
- Lifting height: 1,500 mm / 59 in
Payload: max. 1.5 t / 3,300 lbs
Empty weight without battery: 4,600 kg / 10,000 lbs
Speed: max. 1.8 m/s / 6 f/s
Lifting height: 1,500 mm / 59 in
Fork design: ISO fork carriage, forged forks
Optional: sideshift, tilt adjustment, fork adjustment
Navigation: contour, magnetic, laser or hybrid navigation
Power supply: Battery change (manual) or automatic charging
Battery: lead-acid, lead-gel, pure lead, lithium (LFP)
Low maintenance costs: due to good accessibility of components, large control cabinet, easy drive replacement
Personal safety: 3 safety laser scanners for 360° all-round protection
Object protection: 3 ToF cameras in main direction of travel
Uncompromising industrial suitability combined with a high load capacity and the eye-catching dimension of the lifting height.
- Payload: Max. 1.5 t / 3,300 lbs
- Lifting height: 4,500mm / 177 in
Payload: max. 1.5 t / 3,300 lbs
Empty weight without battery: 4,820 kg / 10,600 lbs
Speed: max. 1.8 m/s / 6 f/s
Lifting height: 4,500 mm / 177 in
Fork design: ISO fork carriage, forged forks
Optional: sideshift, tilt adjustment, fork adjustment
Navigation: contour, magnetic, laser or hybrid navigation
Power supply: Battery change (manual) or automatic charging
Battery: lead-acid, lead-gel, pure lead, lithium (LFP)
Low maintenance costs: due to good accessibility of components, large control cabinet, easy drive replacement
Personal safety: 3 safety laser scanners for 360° all-round protection
Object protection: 3 ToF cameras in main direction of travel
Uncompromising industrial suitability combined with a high load capacity and the eye-catching dimension of the lifting height.
- Payload: Max. 1.5 t / 3,300 lbs
- Lifting height: 8.500mm / 334 in
Payload: max. 1.5 t / 3,300 lbs
Empty weight without battery: 5,300 kg / 11,700 lbs
Speed: max. 1.8 m/s / 6 f/s
Lifting height: 8,500 mm / 334 in
Fork design: ISO fork carriage, forged forks
Optional: sideshift, tilt adjustment, fork adjustment
Navigation: contour, magnetic, laser or hybrid navigation
Power supply: Battery change (manual) or automatic charging
Battery: lead-acid, lead-gel, pure lead, lithium (LFP)
Low maintenance costs: due to good accessibility of components, large control cabinet, easy drive replacement
Personal safety: 3 safety laser scanners for 360° all-round protection
Object protection: 3 ToF cameras in main direction of travel
Uncompromising industrial suitability combined with a high load capacity and the eye-catching dimension of the lifting height.
- Payload: Max. 2,5 t
- Lifting height: 1.500mm / 59 in
Payload: max. 2.5 t / 5,500 lbs
Empty weight without battery: 5,010 kg / 11,000 lbs
Speed: max. 1.5 m/s / 5 f/s
Lifting height: 1,500 mm / 59 in
Fork design: ISO fork carriage, forged forks
Optional: sideshift, tilt adjustment, fork adjustment
Navigation: contour, magnetic, laser or hybrid navigation
Power supply: Battery change (manual) or automatic charging
Battery: lead-acid, lead-gel, pure lead, lithium (LFP)
Low maintenance costs: due to good accessibility of components, large control cabinet, easy drive replacement
Personal safety: 3 safety laser scanners for 360° all-round protection
Object protection: 3 ToF cameras in main direction of travel
Uncompromising industrial suitability combined with a high load capacity and the eye-catching dimension of the lifting height.
- Payload: Max. 2.0t / 4,400 lbs
- Lifting height: 4,500mm / 177 in
Payload: max. 2 t / 4,400 lbs
Empty weight without battery: 5,240 kg / 11,500 lbs
Speed: max. 1.5 m/s / 5 f/s
Lifting height: 4,500 mm / 177 in
Fork design: ISO fork carriage, forged forks
Optional: sideshift, tilt adjustment, fork adjustment
Navigation: contour, magnetic, laser or hybrid navigation
Power supply: Battery change (manual) or automatic charging
Battery: lead-acid, lead-gel, pure lead, lithium (LFP)
Low maintenance costs: due to good accessibility of components, large control cabinet, easy drive replacement
Personal safety: 3 safety laser scanners for 360° all-round protection
Object protection: 3 ToF cameras in main direction of travel
