AMADEUS
Classic | Wide | Low | Counter | Grip
Compact stacker with optimized size and numerous variants
- Maximum lifting weight of 2,000kg / 4,400 lbs
- Maximum lifting height 2,800mm / 110 inch
- Maximum speed 1.8m/s / 6 f/s
- Smart navigation
Compact
Move and lift loads in four combinable versions.
The AMADEUS high-lift stacker is at your side for all undertakings. It can not only pick up to two Euro pallets and industrial pallets, but also boxes, containers or special goods tailored to your needs. Driverless operation and its extremely compact design make the stacker an uncompromisingly industrial driverless transport vehicle with guaranteed personal safety.
Driverless transport vehicles without compromise
Transport weight
Our designed self-built series device, despite its compactness, can carry payloads without restrictions of up to 2 tons / 4,400 pounds.
Compact design
Thanks to its compact design and innovative navigation techniques, the AMADEUS can optimally execute transport jobs even in the narrowest aisles.
Lifting height
The hydraulic telescopic lift mast can reach lifting heights of up to 2,800mm / 110 in and can thus be used in the various warehouses.
![[Translate to English:]](/fileadmin/_processed_/d/5/csm_Amadeus_Variabilitaet_und_Optionen_1920_komprimiert_c4f38c9206.jpg "[Translate to English:]")
Suitable for numerous applications
The AMADEUS high lift truck is available in Classic, Wide, Low , Counter and Grip models. Depending on the requirements of the operating environment and the loads to be transported, the automated stackers can also be combined and integrated into existing DS Automotion systems. According to your needs, we can also adapt the basic AMADEUS model directly to your requirements.
Benefits that move
Our all-rounder can not only accommodate up to two Euro pallets and industrial pallets, but also boxes, containers or special goods tailored to your needs.
With the help of the latest sensor technology and sophisticated software, our products are more precise than any others.
The compatibility of our product range means that an optimal solution can be tailored to your requirements.
Due to the coordinated software technology, your orders can be optimized and processed efficiently
Our proprietary autonomous vehicle software, ARCOS, enables our vehicles to handle jobs autonomously while maintaining the highest efficiency.
Through our AI-supported optimization processes, the processes to be handled can be optimally planned and executed.
Our NAVIOS control system software is available with the VDA5050 interface.
You can expand your plant at any time and equip it with additional vehicles. These are easy to integrate into the existing plant.
The perfect product for your requirements
![[Translate to English:]](/fileadmin/_processed_/f/0/csm_Gross_und_Sonderladungstraeger_komprimiert_2cc2b8957b.jpg "[Translate to English:]")
Variants & Technical Data
Our classic: the stacker is ideally suited for pallets lengthwise, floor storage areas as well as transfer stations.
- Payload: Max. 1.5 t / 3,300 lbs
- Lifting height: 85 mm - 2,800 mm / 3 in - 110 in
Payload: max. 1.5 t / 2.0 t // 3,300 lbs / 4,400 lbs
Speed max.: 1.8 m/s // 6 f/s
Lifting height / Fork height:
Mono Mast: 85 mm – 1000 mm // 3 in - 39 in
Duplex Mast: 85 mm – 2880 mm // 3 in - 113 in
Navigation: Laser, SLAM
Power supply: automatic charging, battery replacement
Battery:
Li-NMC (24V / 208Ah / 312 Ah) Trog 63
Lead Gel (24V / 375Ah) Trog 63
Low maintenance cost: du to AC drives
Personal safety: Protected integrated laser scanner with 360° surround view
Field of application:
- Pallets lenghtwise
- Pallet cages crosswise
- Floor space
- Row of floor space
- Transfer station (accessible with legs)
- Pallet racks up to 2,700 mm / 9 ft

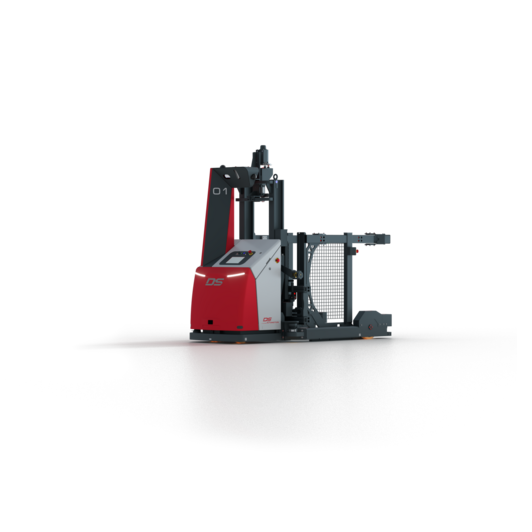

Another substructure enables the high lift stacker to grasp pallets and pallet cages crosswise as well as racks with forklift lugs
- Payload: Max. 1.5 t / 3,300 lbs
- Lifting height: 85 mm - 2,800 mm / 3 in - 110 in
Payload: max. 1.5 t / 2.0 t // 3,300 lbs / 4,400 lbs
Speed max.: 1.8 m/s // 6 f/s
Lifting height / Fork height:
Mono Mast: 85 mm – 1000 mm // 3 in - 39 in
Duplex Mast: 85 mm – 2880 mm // 3 in - 113 in
Navigation: Laser, SLAM
Power supply: automatic charging, battery replacement
Battery:
Li-NMC (24V / 208Ah / 312 Ah) Trog 63
Lead Gel (24V / 375Ah) Trog 63
Low maintenance cost: du to AC drives
Personal safety: Protected integrated laser scanner with 360° surround view
Field of application:
- Pallets lenghtwise
- Pallet cages crosswise
- Racks with forklift lugs
- Floor space
- Row of floor space
- Transfer station (accessible with legs)
![[Translate to English:]](/fileadmin/_processed_/0/8/csm_AMADEUS-wide_8910bb37c1.jpg "[Translate to English:]")
For commissioning challenges, the Amadeus Low is used. with the extra-long forks, two parettes can be picked up at the same time.
- Payload: Max. 2 t
- Lifting height: 85 mm - 100 mm / 3 in - 4 in
Payload: max. 2.0 t // 4,400 lbs
Speed max.: 1.8 m/s // 6 f/s
Lifting height / Fork height: 100mm / 4 in
Navigation: Laser, SLAM
Power supply: automatic charging, battery replacement
Battery:
Li-NMC (24V / 208Ah / 312 Ah) Trog 63
Lead Gel (24V / 375Ah) Trog 63
Low maintenance cost: du to AC drives
Personal safety: Protected integrated laser scanner with 360° surround view
![[Translate to English:]](/fileadmin/_processed_/1/9/csm_AMADEUS-low_4e520a7353.jpg "[Translate to English:]")
Is a counterbalanced truck for extreme requirements.
- Payload: Max. 1.2 t / 2,645 lbs
- Lifting height: 85 mm - 2,800 mm / 3 in - 110 in
Payload: max. 1.2 // 2,645 lbs
Speed max.: 1.8 m/s // 6 f/s
Lifting height / Fork height:
Mono Mast: 85 mm – 1200 mm // 3 in - 47 in
Duplex Mast: 85 mm – 2880 mm // 3 in - 113 in
Navigation: Laser, SLAM
Power supply: automatic charging, battery replacement
Battery:
Li-NMC (24V / 208Ah / 312 Ah) Trog 63
Lead Gel (24V / 375Ah) Trog 63
Low maintenance cost: du to AC drives
Personal safety: Protected integrated laser scanner with 360° surround view
Field of application:
- Pallets crosswise
- Pallet cages crosswise
- Racks with forklift lugs
- Floor space
- Row of floor space
- Transfer station (accessible with legs)
Just the right one for transporting insulation materials.
- Payload: max. 800kg / 1764 lbs
- Lifting height: 85 - 2800mm / 3 in - 110 in
Payload: max. 1.2/2.0 t // 2,645 lbs/4,400 lbs
Speed max.: 1.8 m/s // 6 f/s
Lifting height / Fork height:
Mono Mast: 85 mm – 1200 mm // 3 in - 47 in
Duplex Mast: 85 mm – 2880 mm // 3 in - 113 in
Navigation: Laser, SLAM
Power supply: automatic charging, battery replacement
Battery:
Li-NMC (24V / 208Ah / 312 Ah) Trog 63
Lead Gel (24V / 375Ah) Trog 63
Low maintenance cost: du to AC drives
Personal safety: Protected integrated laser scanner with 360° surround view
Field of application:
- Styrofoam blocks
- Building material
